About Our Panel Filters

Panel filters are made with two layers of media sealed around an internal support wire. If you consider each layer of media a “ply”, all ring panels are two-ply. Our technology layers fibers from coarse to fine creating multiple zones of particle capture.

The first layer of coarse fibers capture the largest dust particles, while the medium and fine fiber layers trap the largest volume of small particulate. The final layer of sticky tackifier locks the dust particles into the filter so they don’t migrate downstream.

Description

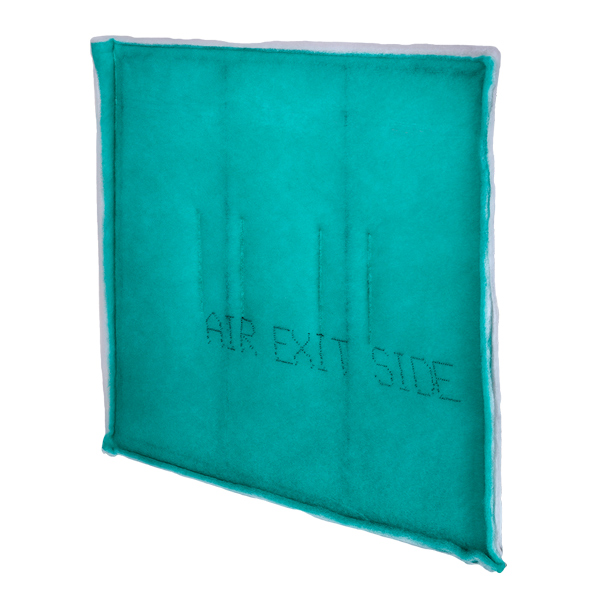

Our MERV 8 Panel Filter is an excellent choice for retention of small airborne particulates. Two layers of polyester are heat sealed around a recycled metal grid. The air inlet side of the filter is a white; multi-denier coarse polyester. The air exit side of the filter is fine-denier tackified polyester made using recycled plastics. With these dual layers of media, the adhesive stops and retains small particulate.

MERV 8 Panel Filter Size Chart

MERV 8 Link Filter Size Chart

Installation Instructions for Links

Installation Instructions for Links

Typical side access track.

Example of 20 x 80 link ready to install.

Always fold top and bottom salvage
edge toward the upstream direction of track.

Link filters installed with no

by-pass and 100% filtering area.

For difficult applications, a steel rod can be
used to ease the link down the track.

Shown is a nominal 20" height by 80” length link. Four continuous 20” x 20" panels.
