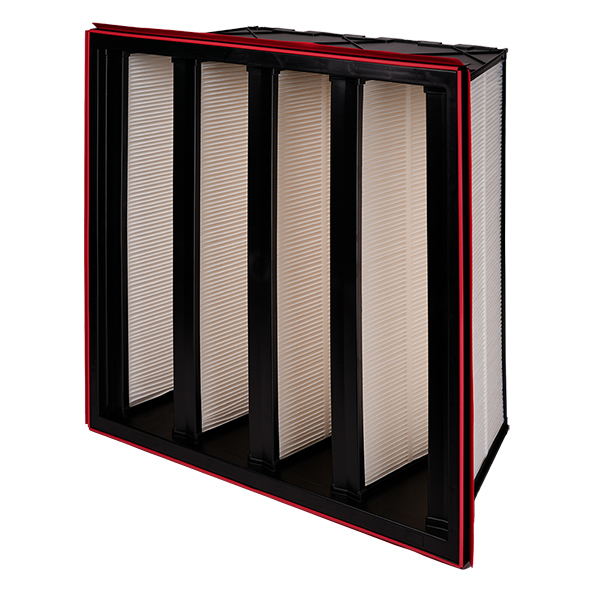

MICRO SHIELD 4V V CELL FILTER

Our Micro Shield high efficiency 4V V cell air filter, features technologically advanced media, incorporating a dual-layer, gradient density fiber structure that results in exceptionally low airflow resistance, reducing both energy and operating costs.

  • MERV 16
  • Dual density filtration media
  • Pleat edges captured in a sealing adhesive

The MERV 16, Micro Shield 4V cell mini-pleat design incorporates 130 square feet of high efficiency media within a 24x24x12 molded high impact plastic frame.

PERFORMANCE

  • Final recommended resistance 1.5" W.G.
  • Rated velocity 500 FPM, max 650 FPM
  • Maximum operating temperature: 160°F
  • Glue bead separated pleat construction
  • Four (4) Spring clip mounting holes on downstream side
  • Rated for flammability per UL 900
  • 4V Micro Shield Spec Sheet
  • 4V Cell Filter Test Report

MICRO SHIELD 4V V CELL FILTER CUT SHEET

Description and Benefits

The MICRO SHIELD® Fiberglass V-Cell Filters are engineered to protect both expensive HVAC equipment and people from dirty air and its damaging effects. This filter is ultra-violet resistant. The filter will not breakdown is UV light is used to kit organisms in the airstream. The user-friendly filter is also lightweight, durable and easy to install. The new design also includes molded finger grips for easy installation and handling. The V-Cell Filters are available in both gasketed and non-gasketed versions.

Our specially engineered media is formed into a self-supporting pleat pack that employs glue bead separators for added strength. Each pleat pack is then sealed into an all-plastic, molded frame. This plastic frame utilizes a positive seal, interlocking design with heavy, molded-in lift handles. Also molded into each frame are spring type mounting clip holes, dedicated upstream pre-filter mounting clip locations and solid header surfaces for upstream, downstream and side-to-side gasket applications. These design and construction features combine to produce the industry leading performance in airflow, efficiency and dust-loading uniformity.

Looking for LEED certification? The MICRO SHIELD® Fiberglass V-Cell Filters are the perfect solution if you want to specify or upgrade your current filtration to meet LEED certification requirements. With these high performance filters, your facility can gain points toward LEED certification — also there are tax incentives for LEED's program. The MICRO SHIELD® Fiberglass MERV 14A Filters meet efficiency standards outlined in the LEED program for new construction and existing buildings.
